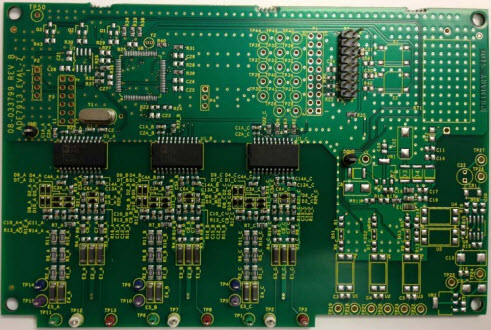

EVAL-ADE7913EBZ, Evaluation Board for Evaluating the ADE7913 Isolated Sigma-Delta ADC Reference Design using part ADE7913ARIZ by Analog Devices

Description
EVAL-ADE7913EBZ, Evaluation Board for Evaluating the ADE7913 Isolated Sigma-Delta analog-to-digital converter. The EVAL-ADE7913 evaluation kit includes two boards that work together (along with the EVAL-SDP-CB1Z) to evaluate the performance of the ADE7913 isolated sigma-delta ADC in a context very close to an actual three-phase meter implementation. Although this kit can also be used to test the ADE7912 ADC, the board is populated with only ADE7913 devices and thus only the ADE7913 is referred to in this user guide. Evaluation software, written in LabVIEW provides access to the registers of every ADE7913 using a PC interface
