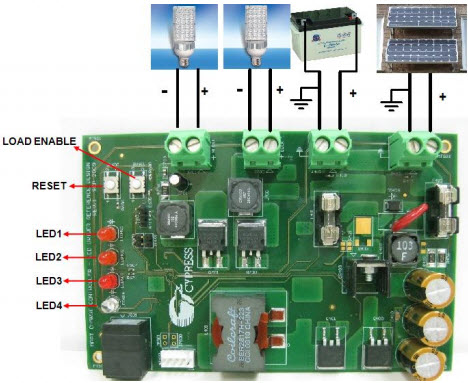

AN56778, PowerPSoC - MPPT Solar Charger with Integrated LED Driver using Infineon Technologies AG's CY8CLED04D01-56LTXI

AN56778, Maximum Power Point Tracking (MPPT) algorithm is used in solar applications to track the peak power delivered by a solar panel and maximize the energy harvested by the panels. AN56778 describes the use of PowerPSoC for an integrated solar charge controller based on the MPPT algorithm with LED drive functionality. It provides an overview of the battery-charging scheme using the PowerPSoC device and describes the state machine used in the algorithm.

Output Current1 A
