TDGL002, chipKIT Uno32 Development Board Reference Design unter Verwendung von Teil PIC32MX320F128H-80I von Microchip Technology

Beschreibung

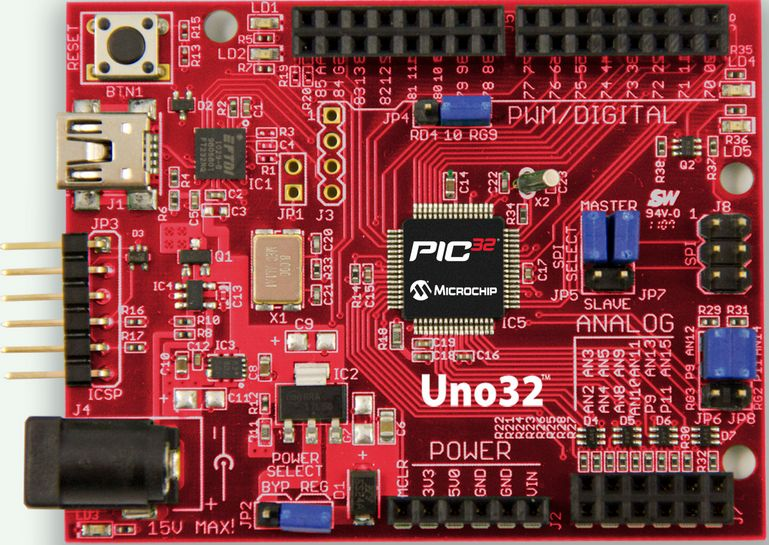

TDGL002, chipKIT Uno32 Development Board. The chipKIT Uno32 is based on the popular Arduino open-source hardware prototyping platform and adds the performance of the Microchip PIC32 microcontroller. The Uno32 is the same form factor as the Arduino Uno board and is compatible with Arduino shields. It features a USB serial port interface for connection to the IDE and can be powered via USB or an external power supply. The Uno32 board takes advantage of the powerful PIC32MX320F128 microcontroller. This microcontroller features a 32-bit MIPS processor core running at 80Mhz, 128K of flash program memory and 16K of SRAM data memory. The Uno32 can be programmed using the Multi-Platform Integrated Development Environment (MPIDE), an environment based on the original Arduino IDE modified to support PIC32

Key Features
Embedded System Type：MCU
Family Name：PIC32
Core Processor：MIPS32 M4K
