DC2016A, Demo-Board für LTM8054 36VIN, 5,4A Sync Buck-Boost-Modul Referenzdesign für Regler unter Verwendung von Teil LTM8054EY#PBF von Analog Devices

Beschreibung

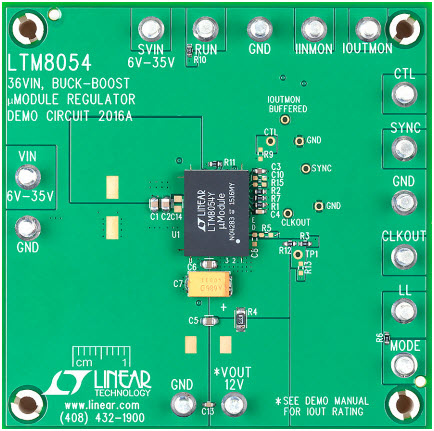

DC2016A, Demonstration Circuit 2016A features the LTM8054 a synchronous buck-boost module regulator that accepts input voltages lower, higher or the same as the output, but is also highly efficient due to its four-switch architecture. The output for DC2016A is 12V and the input voltage range is 6V to 35V - see the LTM8054 data sheet for application circuits with input voltages up to 36V. The maximum output current of DC2016A is 3A and the switching frequency is 600kHz

Key Features
Conversion Type: DC to DC
Input Voltage: 6 to 35 V
Output Voltage: 12 V
Output Current: 1.8 to 3 A
Efficiency: 92 %
